A/FP80x2-2000-N

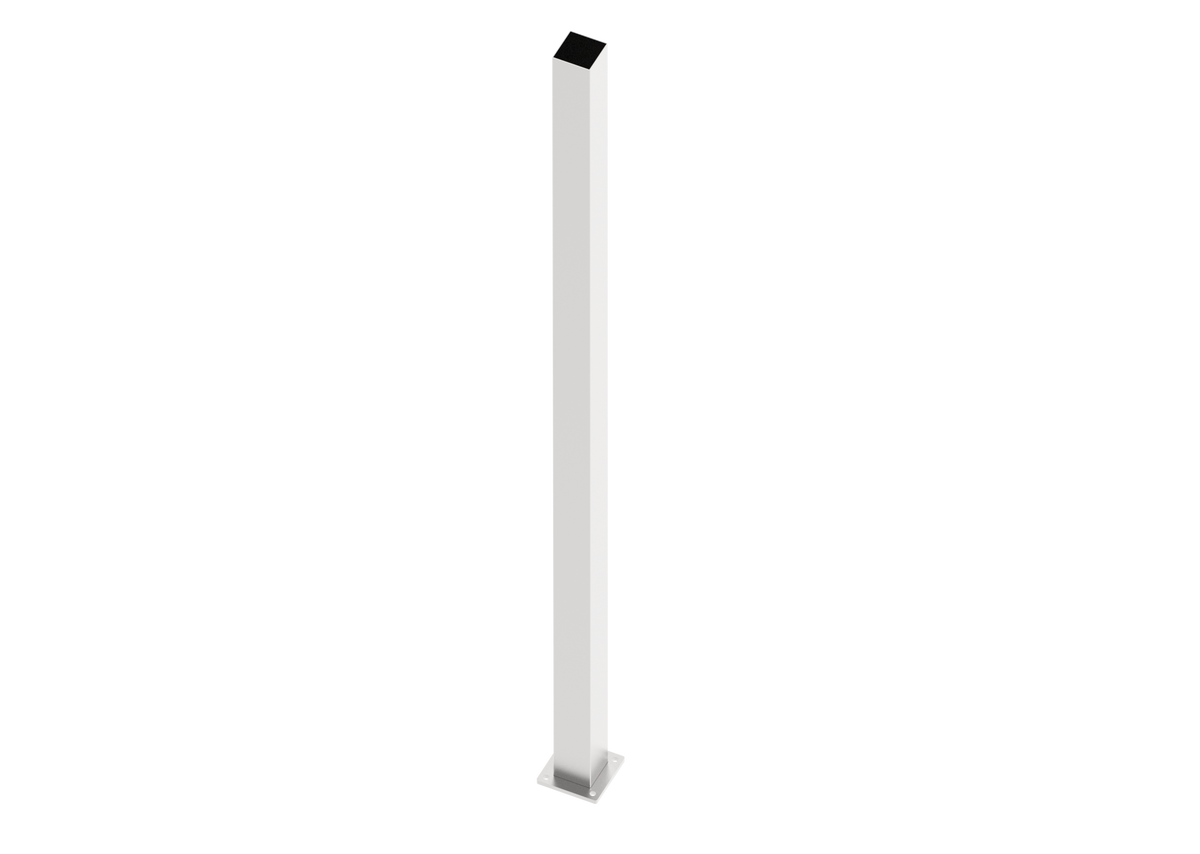

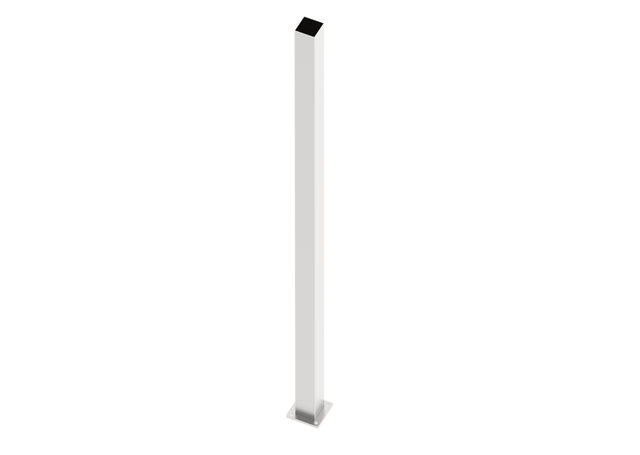

Stainless Steel Post 80x80-2000, with Mounting Flange, Natural

Name: Stainless Steel Post 80x80-2000, with Mounting Flange, Natural
Brand: umakov.pl
SKU: A/FP80x2-2000-N
Price: 573.14 PLN
Availability: InStock

Material: Stainless steel AISI 304, Surface finish: Satined, L: 2000

573,14 zł

without VAT

704,96 zł

with VAT

Stock availability

SK Krompachy 0

PL Ruda Śląska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Description

Stainless Steel Post 80x80-2000 with Mounting Flange, for Hanging Swing Gates - Natural
Product Code: A/FP80x2-2000-N

Stainless steel post primarily designed for hanging swing gates, with a welded mounting flange with 4 holes of 12.5 mm diameter for anchoring the post into the foundation footing, without a cover rosette.

Material
• Stainless steel AISI 304.
• High resistance to corrosion and weather conditions.

Surface Finish
• Natural - brushed stainless steel look.
• Without powder coating, with a natural stainless steel appearance.

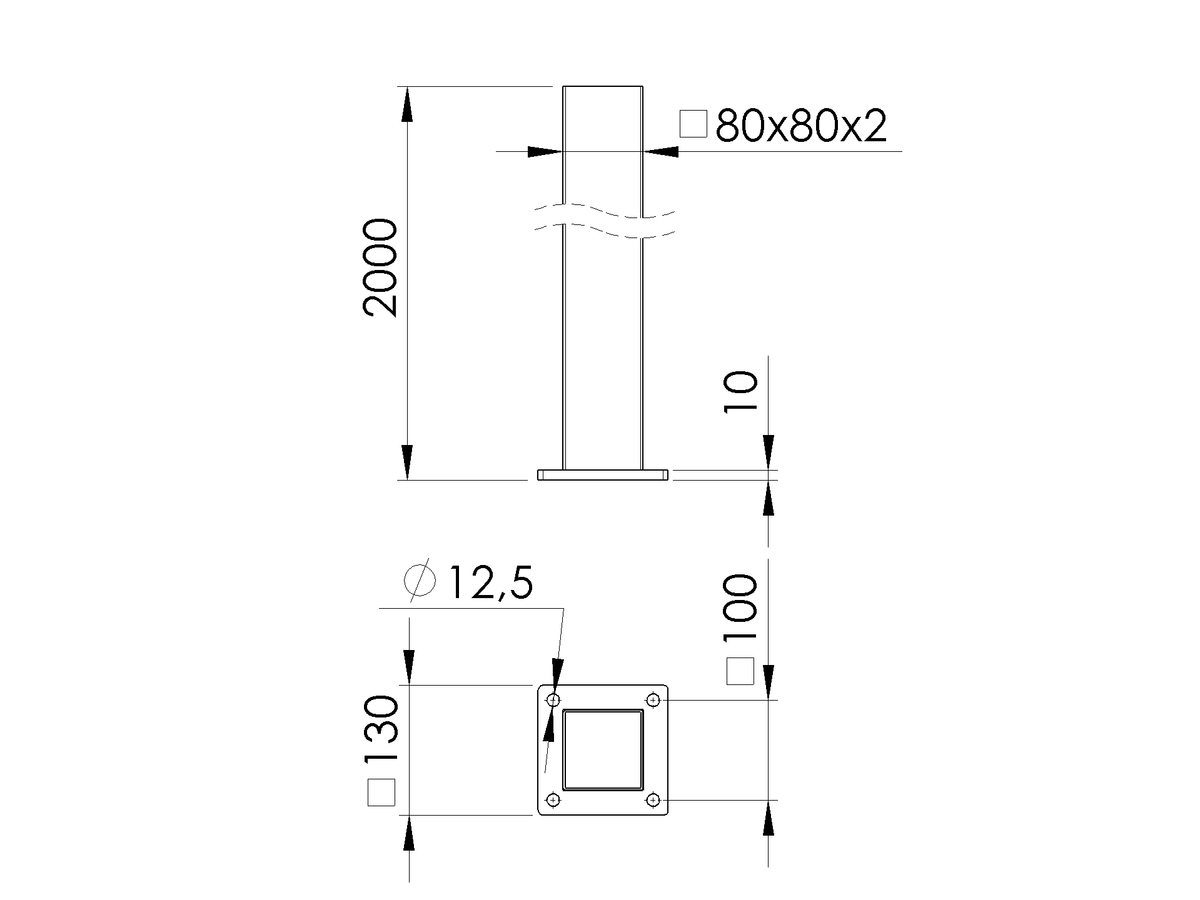

Dimensions
• Cross-section: 80×80 mm.
• Length: 2000 mm (2.0 m).
• Wall thickness: 2 mm.

Installation and Compatibility
• Primarily designed for hanging swing gates (product code FG/S-SSG-R7016-SET), (product code FG/S-SSG-1x1,5-R7016-SET), (product code FG/L-SSG-R7016-SET).
• Anchoring into the foundation footing using 4 pcs of threaded rods (product code A-DIN 975 M10...), 4 pcs of washers A-DIN 125-A2-M10 and 4 pcs of cap nuts (product code A-DIN 1587-A2 M10) with the use of chemical anchor (e.g., product code Q5/1GF-300) or other through-bolts or anchor bolts depending on the foundation footing material.
• Possibility of anchoring adapters:
- MODEL 46 (product code FG/A46...) and (product code FG/AL46U...), for 46 mm wide and obliquely anchored infill: rhomboid louver (product code FG/L1S20x120...), double-chamber (product code FG/L2S20x120...) and oval – outward (product code FG/O20x100...).
- MODEL 40 (product code FG/A40...) and (product code FG/AL40U...) for 40 mm wide and obliquely anchored infill: rhomboid louver (product code FG/L1S20x105...), oval - inward (product code FG/L1R2x105 ...) and oval – outward (product code FG/O20x100...).
MODEL 40 (product code ZN/C40x60x40x2-2000) using a galvanized U25 profile (product code ZN/U25x44x25x1,5-2000) for anchoring galvanized fence louver (product code ZN/L4S40x105-3000-N).
- MODEL 20 (product code FG/AL20U...), MODEL 20PRO (product code FG/A20...), MODEL 20PV (product code FG/AT16...), MODEL 20/18/16/14 (product code FG/A20x14...), MODEL 20/22/24/26 (product code FG/A20x26...), for infills with a width of 20 mm.
MODEL 20 (product code ZN/C35x35x2-6000) using a galvanized U20 profile (product code ZN/U20x25x20x2-6000) for anchoring 20 mm wide infill.
• Possibility of anchoring clamps (product code YAF01ZN04-01...) or clips (product code YAF01ZN04-01-02...), for attaching a welded fence panel (product code YAA01ZN0830x4,0...).
• Compatible with cover cap (product code A/254-80x80), (product code A/254-80x80-R7016).

Advantages
• Post with welded mounting flange, primarily intended for hanging swing gates.
• Natural look of stainless steel material without the need for additional coating.
• High resistance to corrosion and weather conditions.
• Easy replacement of damaged parts.
• Fast assembly with screw system - saving time and costs.
• Minimal maintenance - regular cleaning is sufficient.
