YAD01ZN1800X1,50/8017Z

Post 60x40mm ZnPVC 1800mm brown

Name: Post 60x40mm ZnPVC 1800mm brown
Brand: umakov-pl
SKU: YAD01ZN1800X1,50/8017Z
Availability: InStock

Material: Steel, Surface finish: Zn+PVC, Effect: Brown RAL 8017, L: 1800

0,00 zł

without VAT

0,00 zł

with VAT

Stock availability

SK Krompachy 0

PL Ruda Śląska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Description

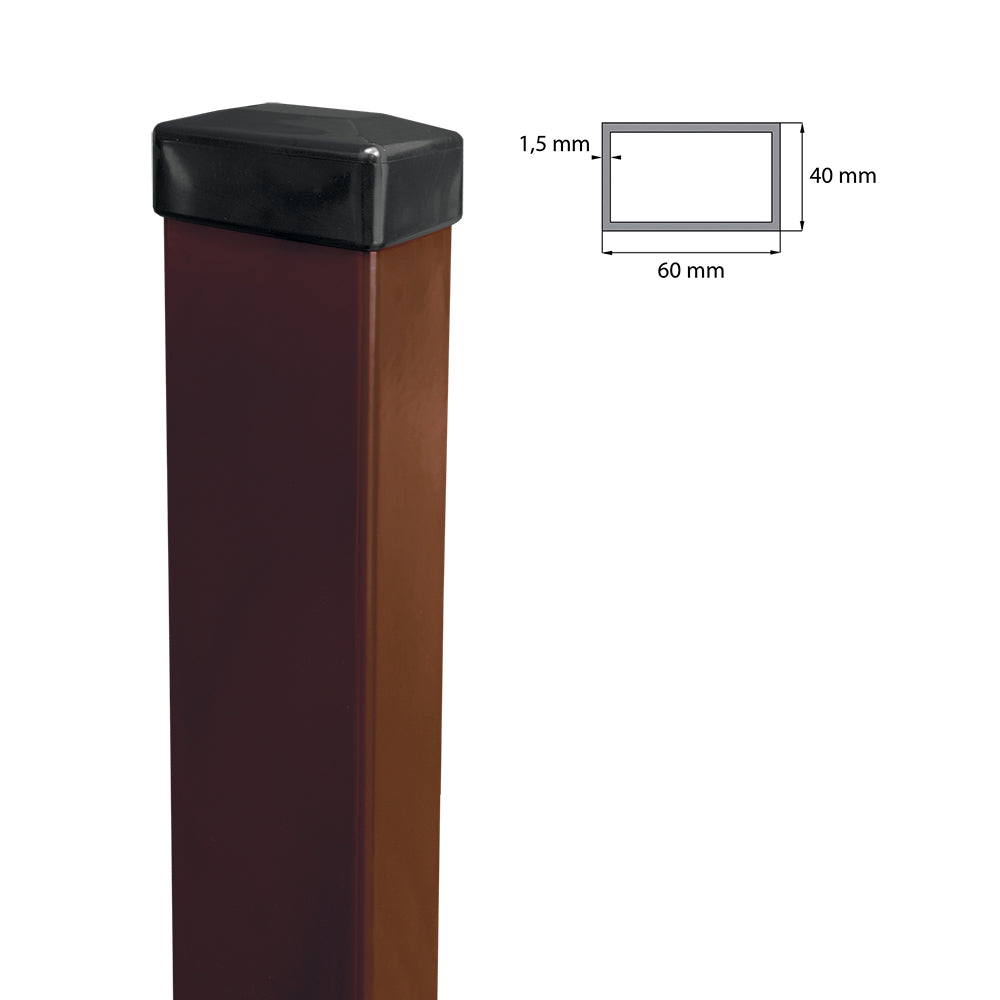

Galvanized Post 60x40 mm without Base Plate with PVC Cap, 1800 mm – Brown RAL 8017

Product Code: YAD01ZN1800X1,50/8017Z

Steel fence post with a cross-section of 60×40 mm, wall thickness of 1.5 mm, without an anchoring base plate and with a PVC cap. It is designed for mounting fence panels and other types of fencing, primarily for setting and concreting into the ground. Thanks to the Zn surface treatment with subsequent powder coating, it is suitable for long-term outdoor use.

Material
• Steel profile with Zn surface treatment.
• PVC cap for finishing the post.

Surface Finish
• Zn surface treatment with subsequent powder coating in Brown RAL 8017 shade.
• Durable surface finish suitable for outdoor use.
• Increased resistance to corrosion and weather conditions.

Dimensions
• Post cross-section: 60×40 mm.
• Length: 1800 mm (1.8 m).
• Wall thickness: 1.5 mm.
• Post type: without base plate.

Installation and Compatibility
• Designed for setting and concreting into the ground.
• The recommended minimum concreting depth for the post is 500 mm.
• For higher or more heavily loaded fences, or in unstable soil, the installation depth must be adjusted to specific conditions.
• During installation, the post is placed into the prepared opening, leveled to a vertical position, and then concreted.

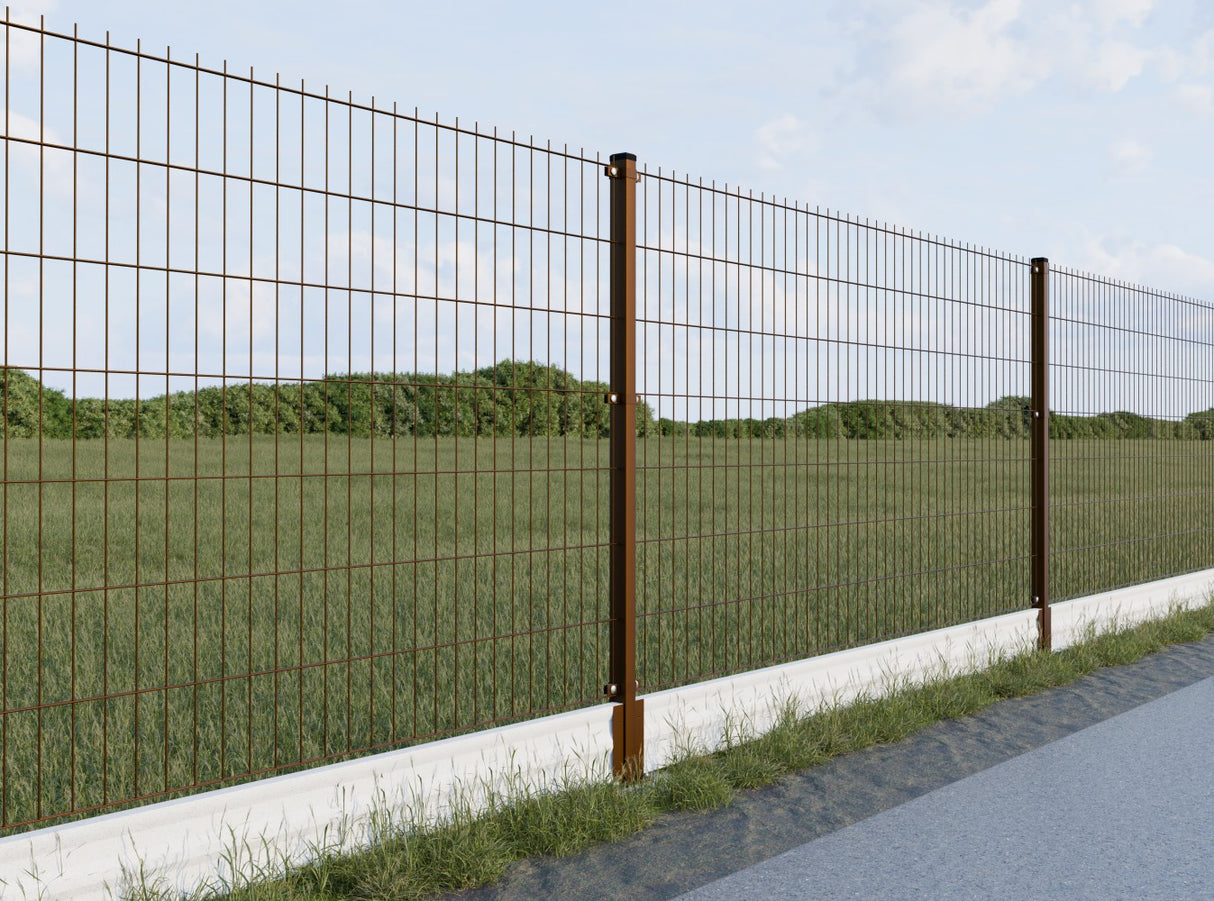

• Suitable for mounting welded fence panels and other types of fence infills.
• Option to anchor clamps (product code YAF01ZN04-01...), brackets (product code YAF01ZN04-01-02...), corner clamp (product code YAF01ZN03-60X40...), continuous clamp (product code YAF01ZN01-60X40...) and end clamp (product code YAF01ZN01-60X40...) for attaching welded fence panels (product code YAA01ZN0830x4,0...).
• Option to anchor adapters: MODEL 20 (product code FG/AL20U...), MODEL 20PRO (product code FG/A20...), MODEL 20PV (product code FG/AT16...), MODEL 20/18/16/14 (product code FG/A20x14...), MODEL 20/22/24/26 (product code FG/A20x26...), for infills with a width of 20 mm.
• Compatibility with base plate (product code YAF04ZN02-060X040/8017-G) and (product code YAF04ZN02-060X040/8017-M). A separate base plate allows the post to be mounted on solid surfaces such concrete foundations, walls, terraces, parking lots, or other stable surfaces.

Advantages
• Robust steel construction with a wall thickness of 1.5 mm.
• Suitable for setting and concreting into the ground.
• Can also be used with a separate base plate when mounting on a solid surface.
• Zn surface treatment and powder coating ensure increased corrosion resistance.
• Modern brown RAL 8017 appearance.
• Universal use for various types of fencing.
• Supplied with PVC cap.
• Minimal maintenance – regular cleaning is sufficient.
