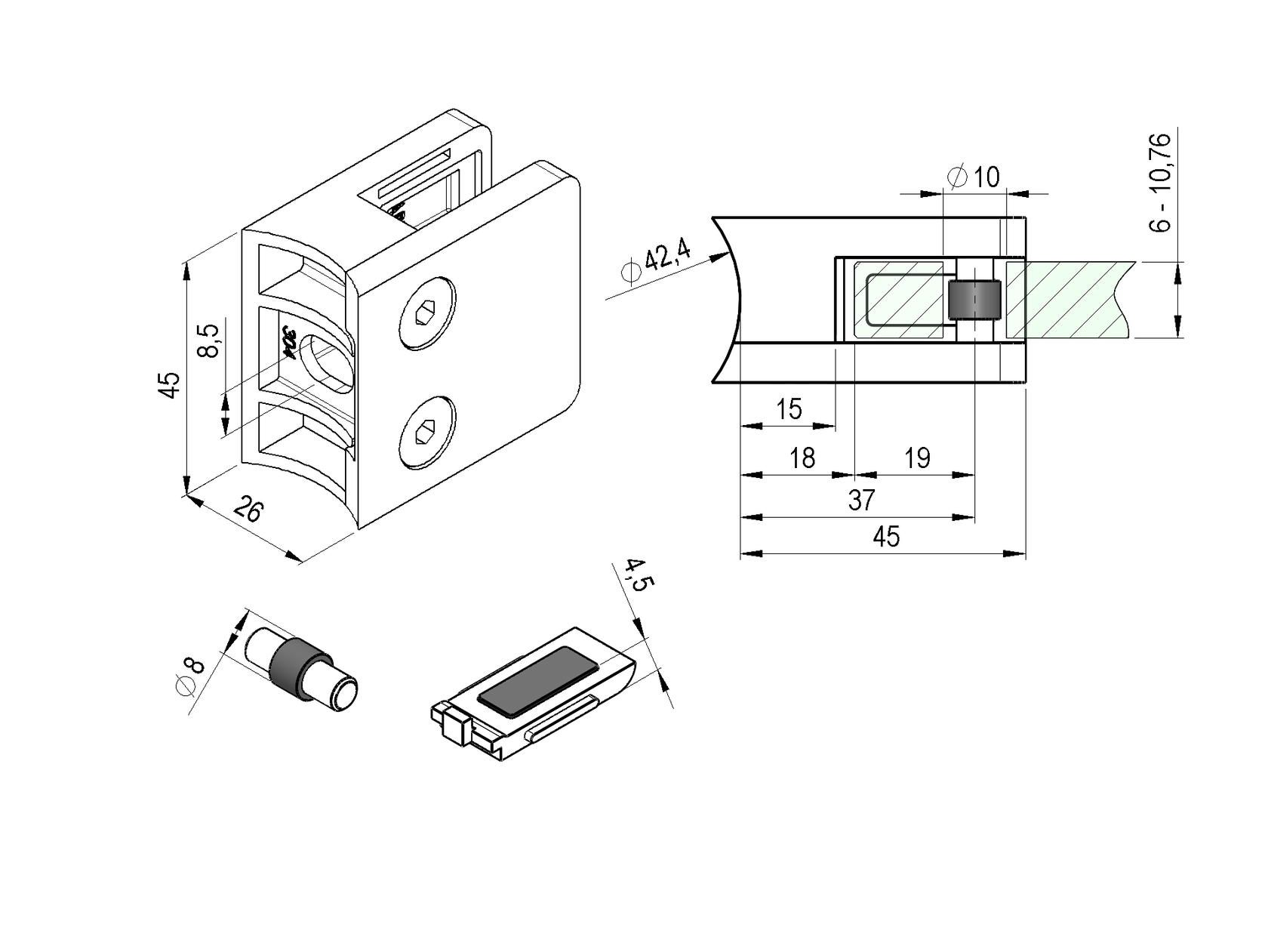

A14/230P-042-L

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Polished, Filling: Glass+Sheet metal, Glass t: 6/6,76/8/8,76/10/10,76/1,5/2/3/4/5, Post: D42,4, Model: Model 230P, Phi: 42,4

18,89 zΕ‚
without VAT
23,23 zΕ‚
with VAT


PCS
Stock availability
SK Krompachy > 750
PL Ruda ŚlΔ…ska > 100

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

The glass (sheet metal, sheet) infill holder is a structural element used to fix and stabilize the glass or sheet infill in various constructions, such as railings, balconies or staircases. This holder ensures a firm and secure attachment of the filling, thus increasing the overall stability and safety of the structure. They are part of modern architectural solutions that combine functionality, safety and aesthetic appearance. When choosing a holder, it is important to consider its material, design, functionality and compatibility with a specific filling and overall construction. Full holding - insurance against falling out is achieved using a clamping joint (recommended use for top anchoring) or clamping joint + colic (recommended use for lateral anchoring) or clamping joint + safety plate (recommended use for lateral anchoring). The holder does not include a seal (necessity to purchase 2 seals depending on the thickness of the glass) and screw caps.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Polished
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/1,5/2/3/4/5
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Post
Determines use based on the size and shape of the post
D42,4
Model
Model 230P
Phi
42,4
