A14/2000-033

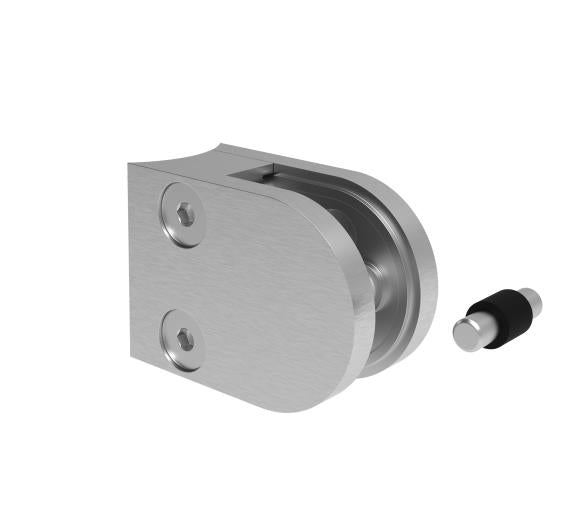

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Filling: Glass+Sheet metal, Glass t: 6/6,76/8/8,76/10/10,76/1,5/2/3, Post: D33,7, Model: Model 20, Phi: 33,7

15,82 zΕ‚
without VAT
19,46 zΕ‚
with VAT


PCS
Stock availability
SK Krompachy > 500
PL Ruda ŚlΔ…ska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

Glass infill holder (sheet metal, panel infill). Infill holding - insurance against falling out: clamp connection (recommended use for top mounting) or clamp connection + dowel (recommended use for side mounting). The holder does not include sealing (need to purchase 2 seals according to glass thickness) and screw covers.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/1,5/2/3
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Post
Determines use based on the size and shape of the post
D33,7
Model
Model 20
Phi
33,7

Catalog list

Required products

End cap PVC - matt surface A19/04-PVC

Material
Plastic
Effect
Gray
0,11 zΕ‚
without VAT
0,14 zΕ‚ with VAT
In stock (1652586 units)
PCS

Rubber inlay for glass clamp A19/20-008

Material
Rubber
Surface finish
Raw
Glass t
8
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (64110 units)
PCS

Rubber inlay for glass clamp A19/20-009

Material
Rubber
Surface finish
Raw
Glass t
8,76
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (19180 units)
PCS

Rubber inlay for glass clamp A19/20-010

Material
Rubber
Surface finish
Raw
Glass t
10
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (15761 units)
PCS

Rubber inlay for glass clamp A19/20-011

Material
Rubber
Surface finish
Raw
Glass t
10,76
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (9247 units)
PCS

Rubber inlay for glass clamp A19/20-006

Material
Rubber
Surface finish
Raw
Glass t
6
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (22036 units)
PCS

Rubber inlay for glass clamp A19/20-007

Material
Rubber
Surface finish
Raw
Glass t
6,76
0,28 zΕ‚
without VAT
0,34 zΕ‚ with VAT
In stock (4285 units)
PCS

Rubber inlay for glass clamp A19/20-0015

Material
Rubber
Surface finish
Raw
Glass t
1,5
0,60 zΕ‚
without VAT
0,74 zΕ‚ with VAT
In stock (4910 units)
PCS

Rubber inlay for glass clamp A19/20-002

Material
Rubber
Surface finish
Raw
Glass t
2
0,82 zΕ‚
without VAT
1,01 zΕ‚ with VAT
In stock (9244 units)
PCS

Rubber A19/20-003

Material
Rubber
Surface finish
Raw
Glass t
3
0,82 zΕ‚
without VAT
1,01 zΕ‚ with VAT
In stock (24940 units)
PCS

Hexagon socket button head screw, AISI316, M8x20 A4-DIN 7380 M8x20

Material
Stainless steel AISI 316
Surface finish
Raw
L
20
2,00 zΕ‚
without VAT
2,46 zΕ‚ with VAT
In stock (4718 units)
PCS
Alternatives

Hexagon socket button head screw, AISI304, M8x20 A-DIN 7380-A2 M8x20

Material
Stainless steel AISI 304
Surface finish
Raw
L
20
0,63 zΕ‚
without VAT
0,77 zΕ‚ with VAT
In stock (112974 units)
PCS
