A-BLACK/230P-042-set4

Glass clamp

Material: Stainless steel AISI 304, Surface finish: Powder coating, Filling: Glass+Sheet metal, Glass t: 6/6,76/8/8,76/10/10,76/1,5/2/3/4/5, Effect: Black RAL 9004, Post: D42,4, Model: Model 230P, Phi: 42,4

68,11 zł
without VAT
83,78 zł
with VAT


PCS
Stock availability
SK Krompachy > 10
PL Ruda Śląska 0

Contact

For more information about the product, you can contact our sales representative:

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

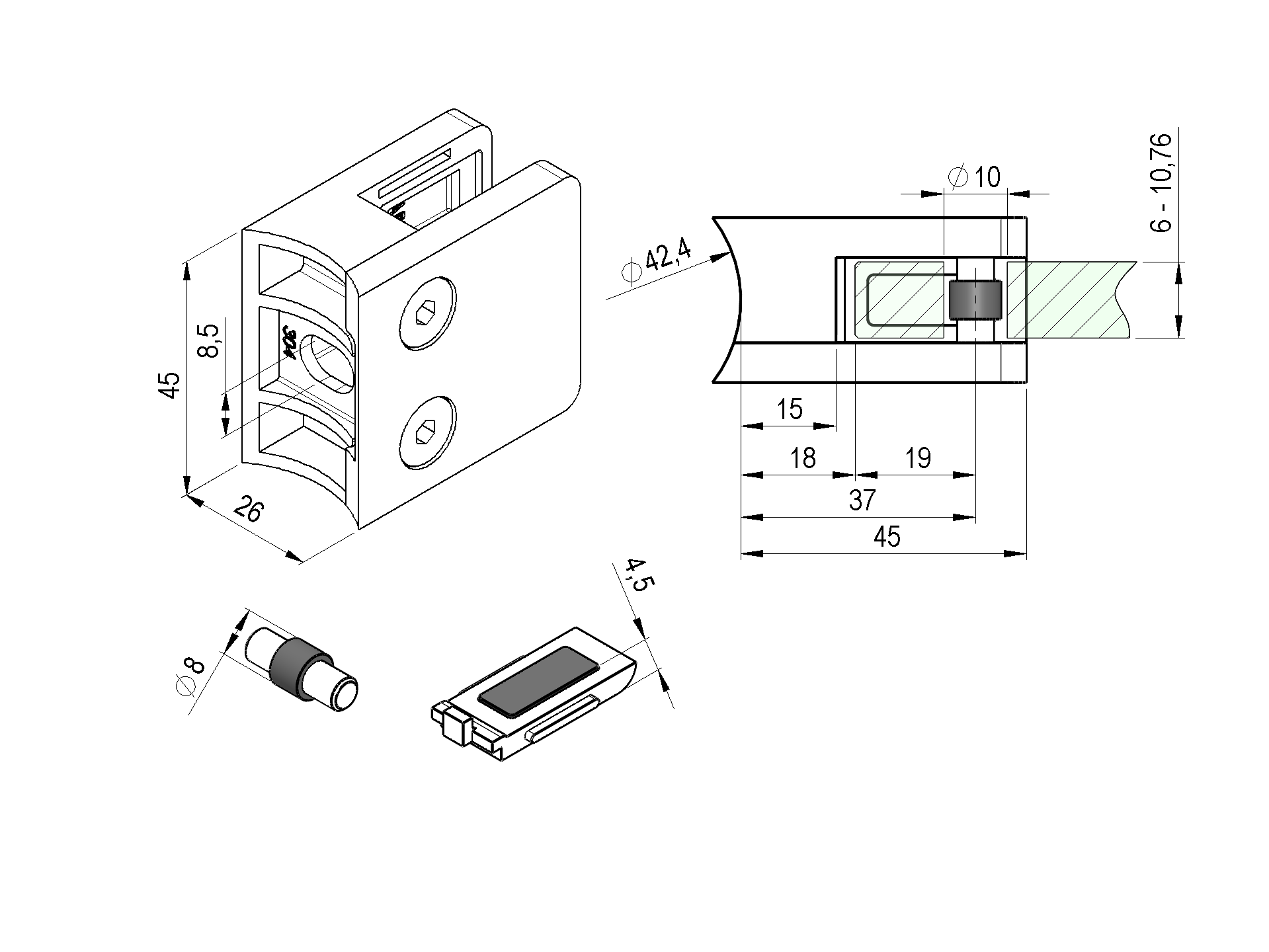

SET4 includes 4 pcs of glass holder in black color in disassembled state + 8 pcs of screws A2 DIN7991 M6x16 + 8 pcs of PVC caps in black color to cover screws A2 DIN7991 M6x16 + 4 pcs of screws A2 DIN 7380 M8x20. Glass filling holder (sheet metal, board filling). Glass holding (prevention against falling out): clamping connection (recommended use for top mounting) or clamping connection + pin (recommended use for side mounting) or clamping connection + safety plate with lock during installation - protection against plate falling out (recommended use for side mounting). The holder does not include sealing (it is necessary to purchase 2 pcs of seals for the holder according to the glass thickness) and caps for screws.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Powder coating
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/1,5/2/3/4/5
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Effect
Vyberte si farebný odtieň.
Black RAL 9004
Model
Model 230P
Post
Determines use based on the size and shape of the post
D42,4
Phi
42,4
