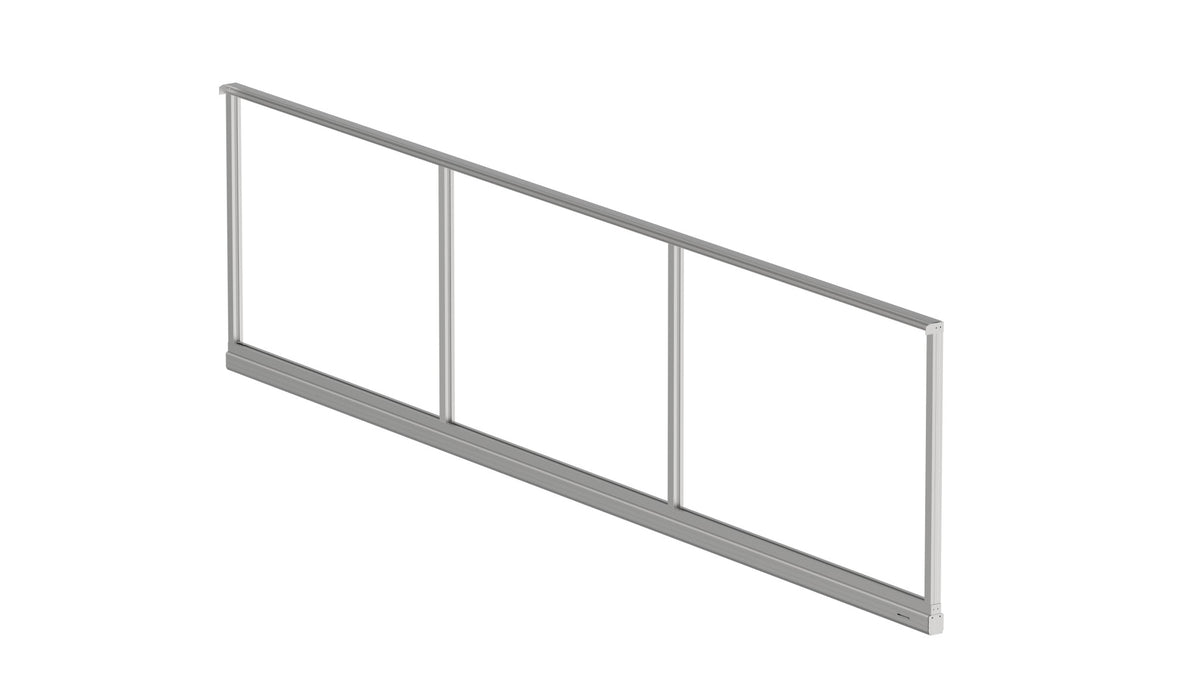

Galvanized Frame for Cantilever Sliding Gate 6x2.125 m, Unwelded, with Tensioner - Natural - SET - ECO
Product code: ZN/FR-CLG-N-SET-ECO
The modern steel, galvanized, unwelded frame for a cantilever sliding gate represents a premium solution for property access without the need for a bottom track. Thanks to its cantilever design, the gate moves above the ground, eliminating problems with dirt, freezing, or track wear. It is an ideal solution for intensive use and demanding climatic conditions.
The frame is made of high-quality galvanized steel profile 60x40x2 mm, which after welding ensures high strength and exceptional corrosion resistance, with the possibility of further enhancement by subsequent painting. The structure is designed for long-term, maintenance-free operation with a recommendation for painting.
The main advantage is a universal frame ready for fitting your own infill according to the desired appearance, level of privacy, or architectural style.
Gate Dimensions
Maximum clear opening width 4500mm, maximum height 2125 mm.
The system is designed a cantilever gate with a galvanized steel C-profile 60x60. The frame is prepared for fitting an individually chosen infill according to customer requirements.
Why choose this gate frame?
If you are looking for a cost-effective, sufficiently strong, modern, reliable, and maintenance-free solution for a cantilever sliding gate with the option of your own infill, this system represents a long-term advantageous investment. It offers high durability, precise manufacturing, a complete mounting set, and maximum flexibility in creating the entrance design according to individual requirements.
Key Competitive Advantage
Unlike classic track systems, this frame is designed for a cantilever gate, which brings: trouble-free operation even in winter without snow and dirt in the track, minimal maintenance without cleaning tracks, quiet and smooth movement, higher reliability in daily use, the welded construction achieves high frame strength, easy infill installation and on-site adjustments with the possibility of infill disassembly.
Technical Parameters
max. gate width: 6000 mm
clear opening width: approx. 4500 mm
max. height: 2125 mm
Tailored Flexibility without Surcharges
The gate frame can be easily adjusted in width and height directly on site by shortening the profiles, which significantly reduces the costs of individual production and simultaneously allows for the installation of infill according to your own requirements.
Complete Solution in One Set
Supplied: galvanized profiles 60x60 for welding the frame, bottom guide, cantilever galvanized C-profile 60x60, top guide U profile 40x40 for welding to the frame, nylon wheel with bracket, top stop, nylon racks with Fe core, including tensioner with galvanized square profile 40x40.
Universal Use
The cantilever sliding gate frame is suitable for family homes, company buildings, industrial areas, and commercial premises. Thanks to the possibility of installing your own infill, it provides maximum flexibility in creating the entrance according to individual requirements and the architectural solution of the building.
Advantages
• complete ECO set for cantilever gate frame
• possibility of installing your own infill according to individual requirements
• high corrosion resistance
• possibility of further coatings at your discretion
• easy subsequent infill installation without welding
• possibility of custom adjustment
• high stability and long service life of the structure
• modular system - possibility of expansion with compatible fence panels
Parameters
Parts of set
Galvanized profile JP 60x40x2mm-6000 ZN/60x40x2-6000
SET - Cantilever Gate Carriage profile 60x60mm SV-60x60-ECO
Guiding track Zn, 60x60x4mm, L6m H/02-60x60-Zn-6000
Nylon wheel with bearing, Zn H/2-53
Upper slope, Zn, profile 40mm, H/37-40P
Holder universal, Zn H/16-46x130
Spray zinc 400ml, 90% Zn J08/03-Zn polish
Hexagon socket button head screw, AISI304, M10x20 A-DIN 7380-A2 M10x20
Plain washer, stainless steel, M10 A-DIN 125-A2 M10
Hexagon nut, stainless steel A-DIN 934 M10
Galvanized profile U 40x40x3mm-6000 ZN/U40x40x3-6000
Lightweight gear rack,max 300kg PVC+Fe core H/01PVC-J-BS
Assembly set for nylon combs H/01PVC-J H/01PVC-FS-J
Tensioner for a self-supporting gate for profile 40x40, 60x40 H/65-40x40
Profil pozinkovaný JP 40 x 40 x 2 mm - 6000 ZN/40x40x2-6000
